Description

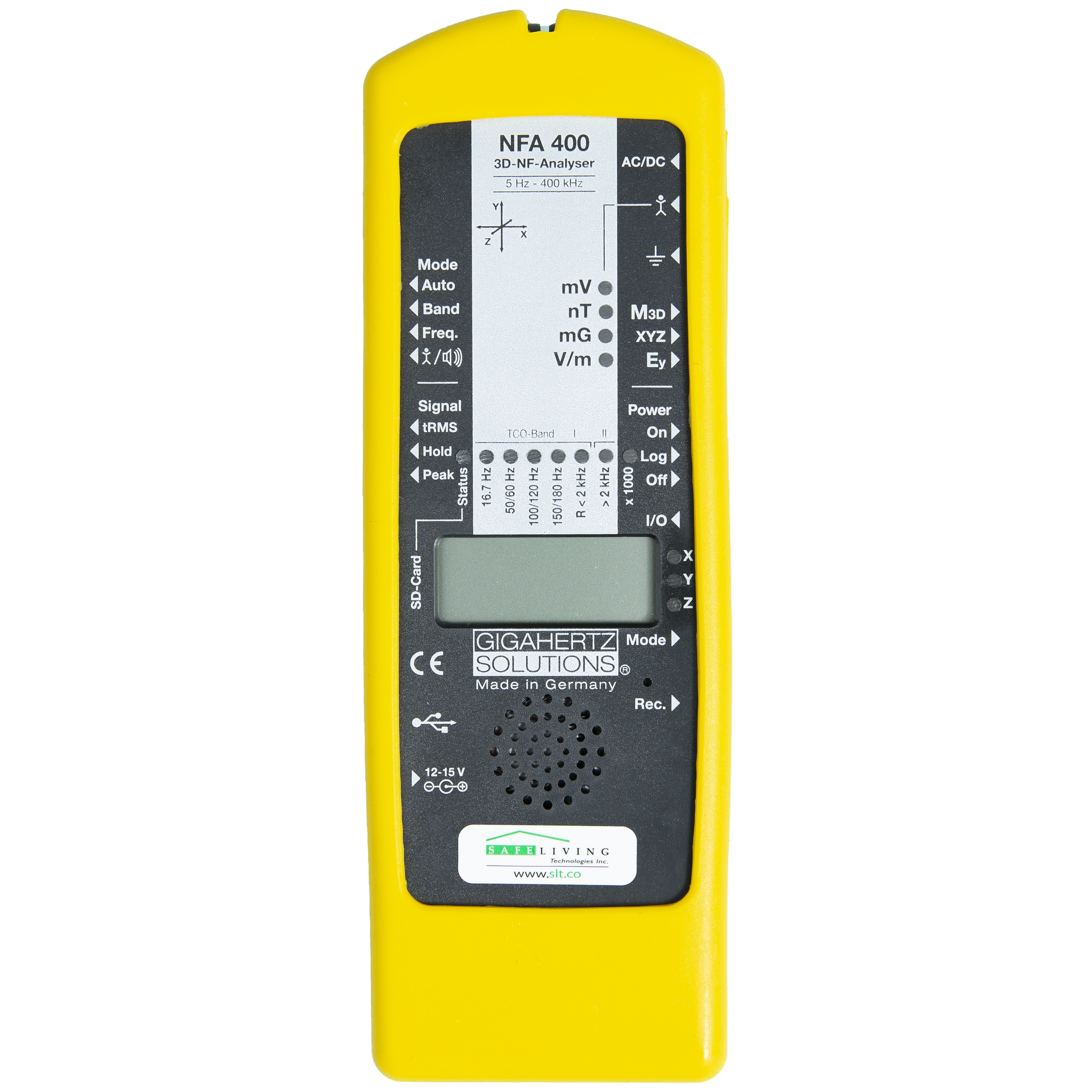

Gigahertz Solutions NFA400

The NFA400 EMF Meter / GaussMeter is designed to meet Building Biology EMF measurement performance requirements.

“Know for sure” what EMF levels you are being exposed to  – own a Gigahertz Solutions NFA400 EMF Meter.

Features:

• 3D measurement of the magnetic field
• 1D potential-free electric field measurement
• Ability for extensive long-term data recordings
• Records simultaneously on 4 recording channels (CH1-3) for desired measurement and optional channel 4
• Supplied with revolutionary PC software (NFASoft) for facilitated interpretation and documentation of the acquired data
• Eliminates the need for X-Y-Z RMS calculations for magnetic field measurements. Ability to measure in single axis mode when necessary
• Channel for recording Radio Frequency signals from the HFE59B RF Analyzer
• Integrated Body Voltage Meter
• USB Connection to PC
• Standard 4 GB SD memory card supplied (upgradeable)
• High frequency transient analysis for “Dirty Electricity”
• Separate true RMS recordings of power line frequencies and harmonics (16.6 Hz | 50/60 Hz | 100/120 Hz plus even harmonics | 150/180 Hz plus odd harmonics | other frequencies < 2 kHz | all > 2kHz)
• Real time voice recordings, or audio input, embedded into the data screen for playback during data evaluation
• A ‘no tamper’ lock feature allows for the device to be left securely on site while data logging is operational
• Customized Geiger Counter/Audio alarm: Allows for a personalized volume and high exposure alarm
• Broadband peak measurements (genuine peak of a wave)
• Li-Ion rechargeable batteries for up to 48 hours of continuous recordings
• External power supply / charger included
• All Gigahertz Solutions EMF Meters are backed by a 2 year manufacturer’s warranty

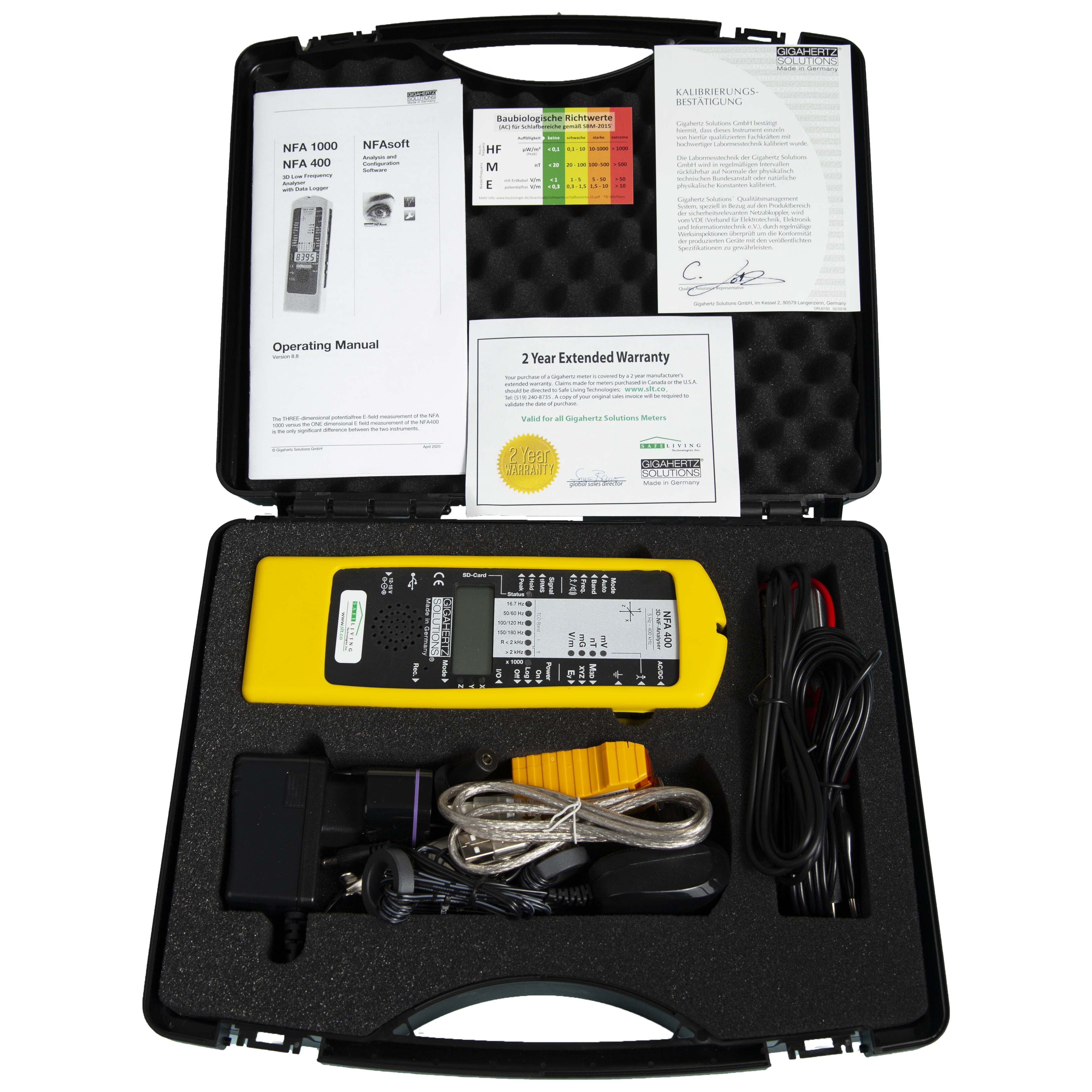

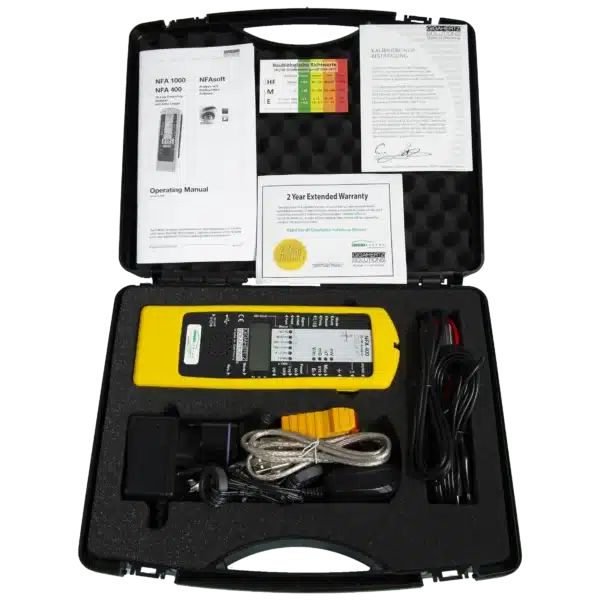

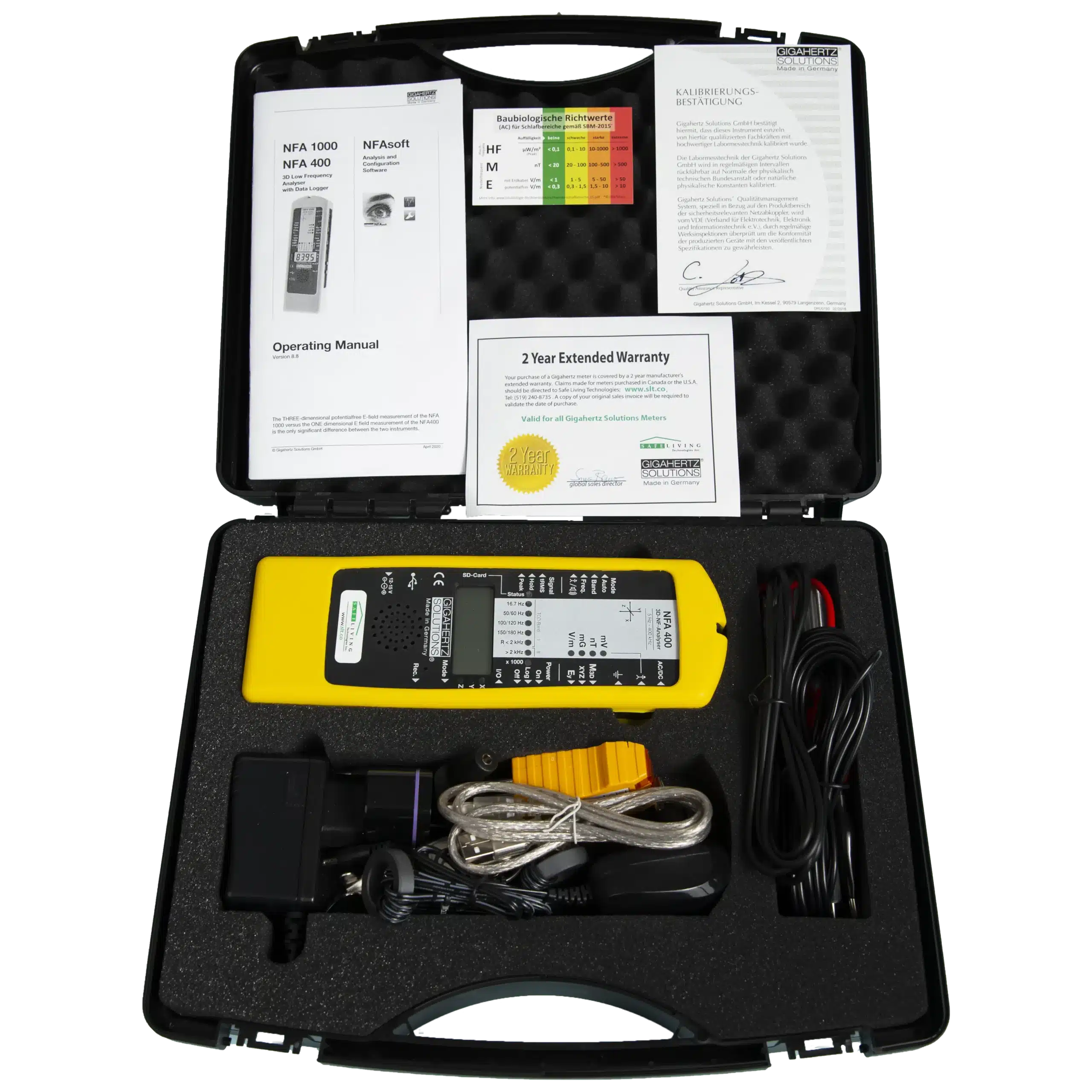

Includes:

• NFA400 EMF Meter Users Guide
• 2 Year Warranty Certificate
• Ships with NFAsoft – Data analysis software – Loaded on SD memory card
• Standard Factory Calibration Certificate

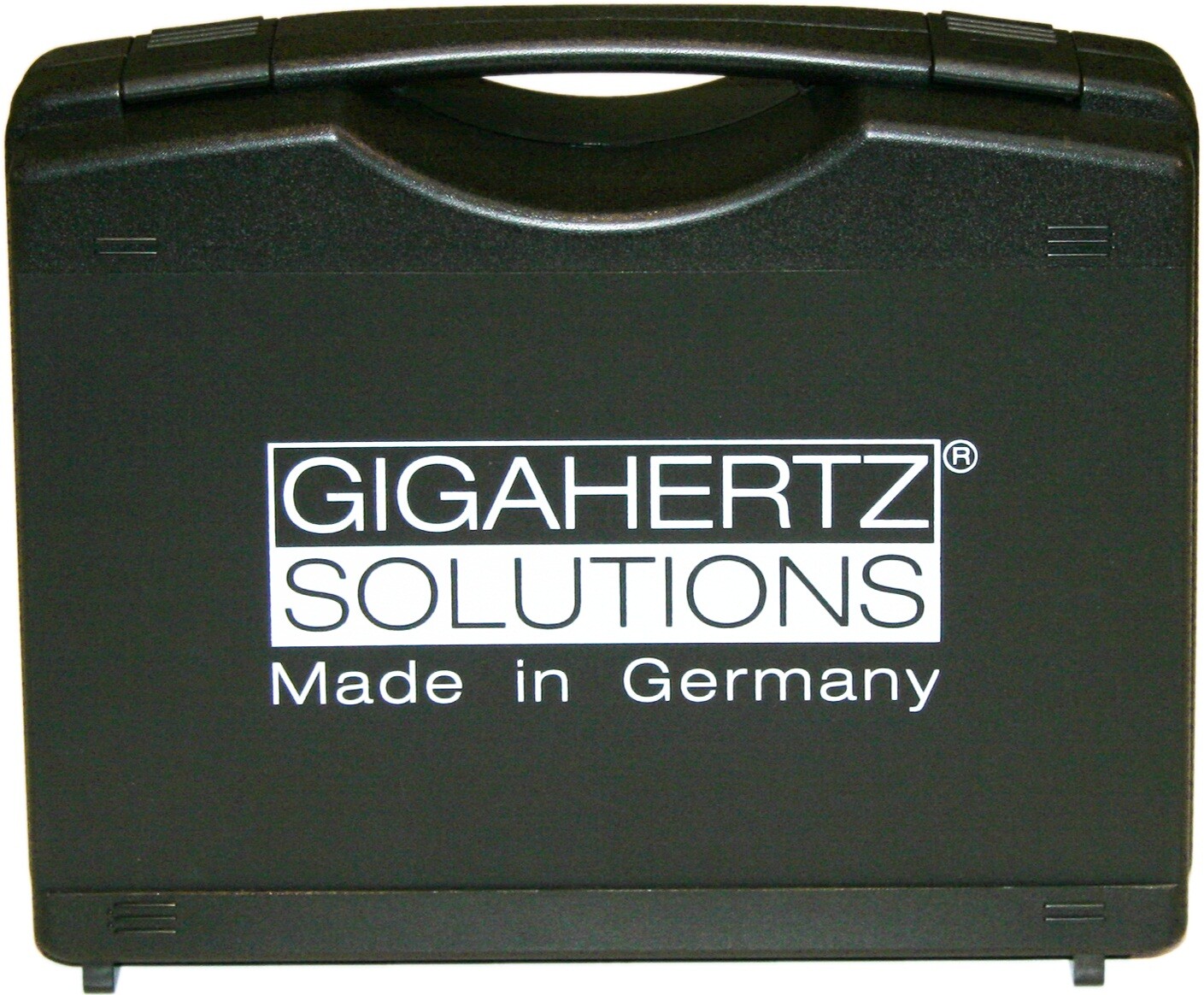

• Plastic Carrying Case
• Grounding Cable – 17 foot (5.18 meters) – for AC electric field measurements
• Grounding Clip – For direct connection to water pipe
• Body Voltage Aluminum Hand Probe and cable
• Rechargeable Battery Pack with charger/power supply
• 4 GB High Speed SD Memory Card
• USB Interface Cable
• Interface Cable (2.5 mm to 2.5 mm) – For connection to HFE59B
• Silicone protective cover – yellow

Calibration Certificate:

During the manufacturing process strict calibration procedures are followed using only high end, calibrated measurement instruments. This guarantees that every NFA400 meter made by Gigahertz has been individually calibrated to a traceable standard. An official 3rd Party Accredited Calibration Certification plus data is available upon request. Please contact us for the current rates.
