Description

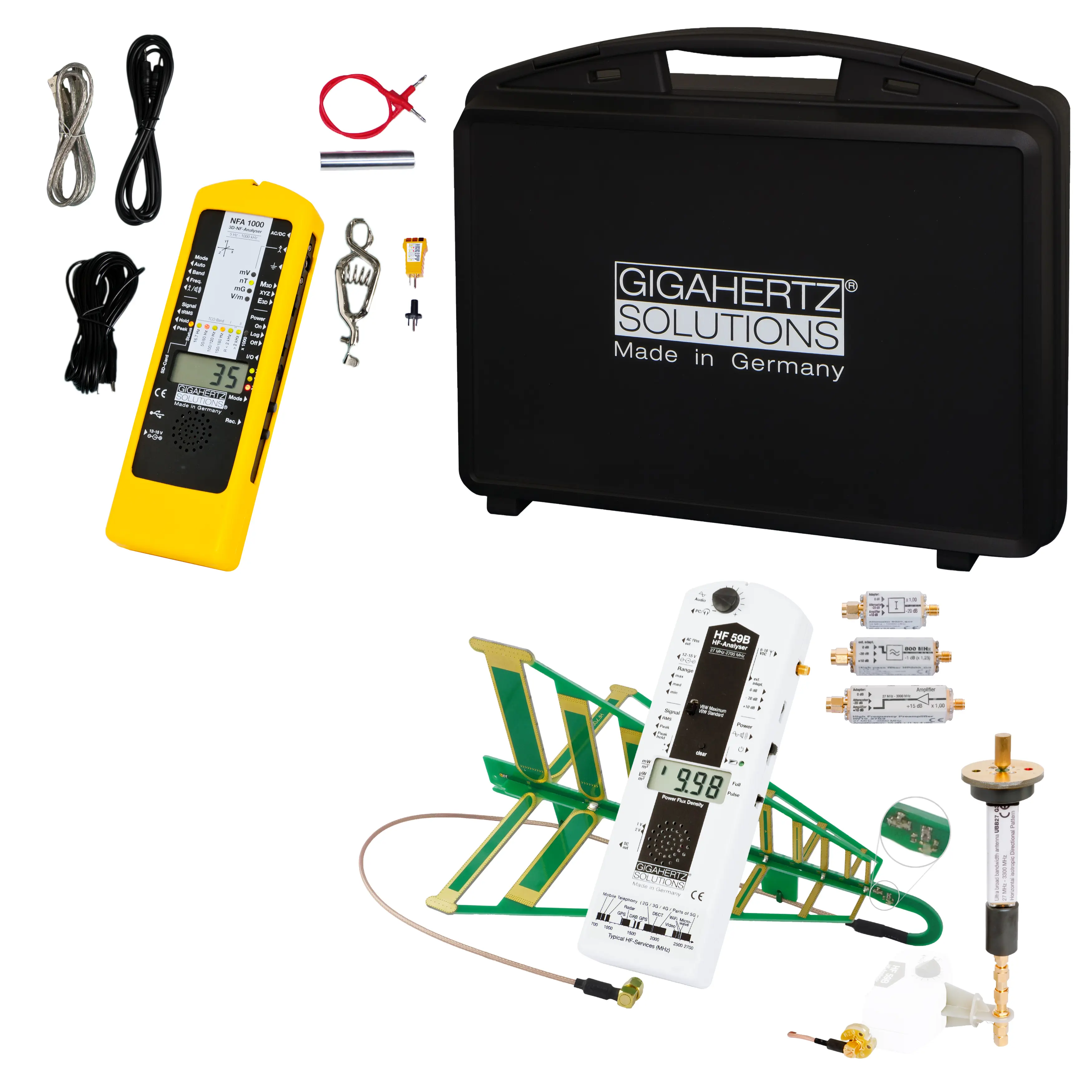

MK70-3D Electrosmog Test Kit

Designed for use in hospitals, EMR research facilities, EMF testing labs and for all EMF professionals.

Gigahertz Solutions – MK70-3D Electrosmog Test Kit contains the Gigahertz Solutions NFA1000 3D EMF Meter / Data Logger and the top of the line HFE59B RF Meter Kit. This is considered our professional EMF test kit as it contains our 2 top of the line EMR Meters which are both capable of being certified at accredited testing facilities. These meters offer the most advanced EMR testing features on the market! The NFA1000’s data logging capabilities allows for long term analysis of EMF exposure data which can be analyzed at any point in time. The NFA1000 can also be interfaced to the HFE59B and is able to record long term radio frequency exposures as well. The NFA1000 includes NFA-Soft, which is a customizable EMF software module which allows for the manipulation RF and EMF data for reporting purposes.

Features:

• NFA1000 – EMF Meter Kit
• HFE59B – RF Meter Kit
• K7 – Plastic Carrying Case

NFA1000 3D EMF Meter / Data Logger Includes:

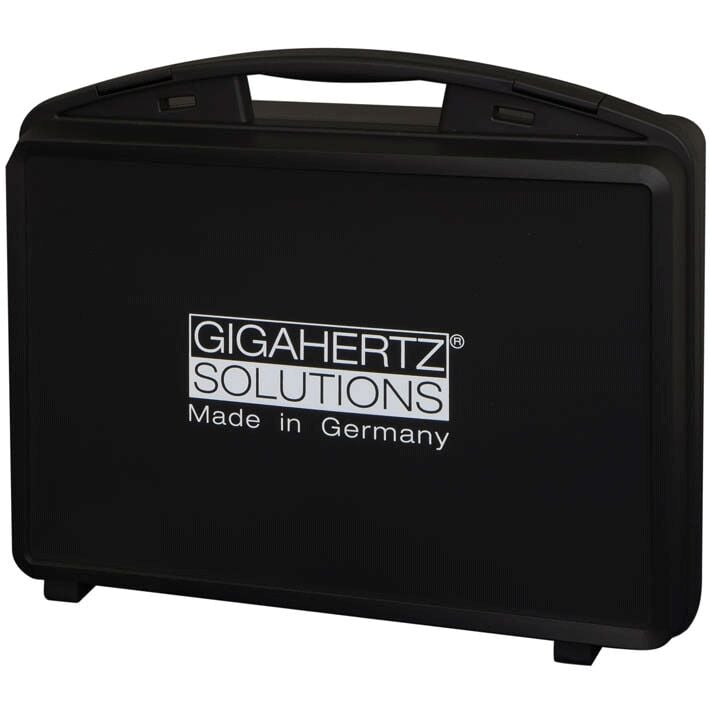

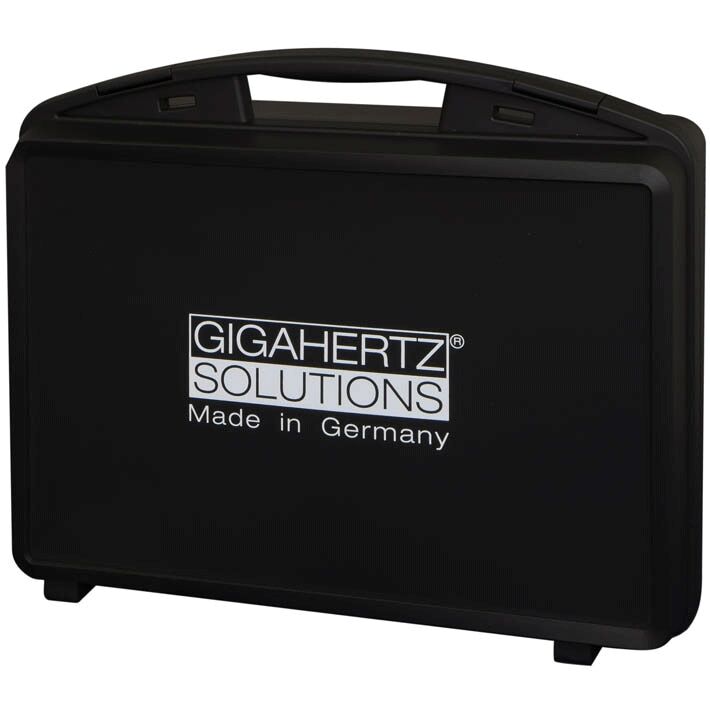

• K7 Plastic Carrying Case – Dimensions L x W x H (19.7″ x 16.2″ x 6.3″) or (50cm x 41cm x 16cm)

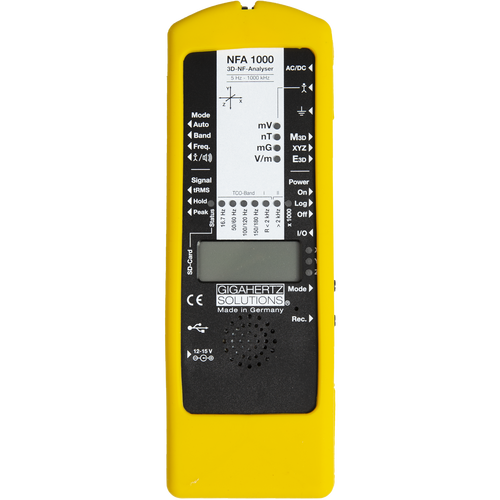

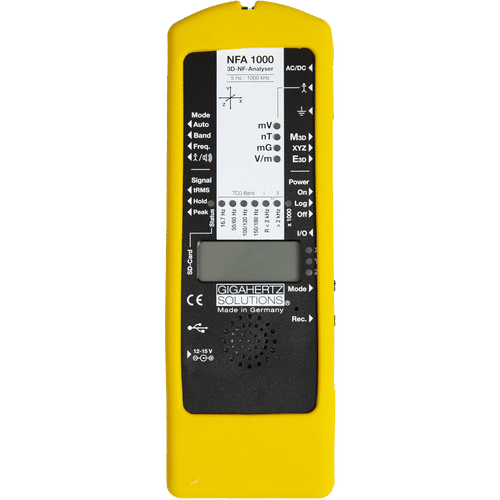

• NFA1000 EMF Meter and Users Guide
• 2 Year Warranty Certificate
• Grounding Cable – 17 foot (5.18 meters) – for AC electric field measurements
• Grounding Clip – For direct connection to water pipe
• Body Voltage Hand Probe and Cable
• Rechargeable Battery Pack + Charger/Power Supply 12v and 15v
• 4 GB High Speed SD Memory Card
• USB Interface Cable, Ground Plug, Outlet tester
• Interface Cable (2.5 mm to 2.5 mm) – For connection to HFE59B
• Silicone protective cover – yellow

HFE59B RF Meter Includes:

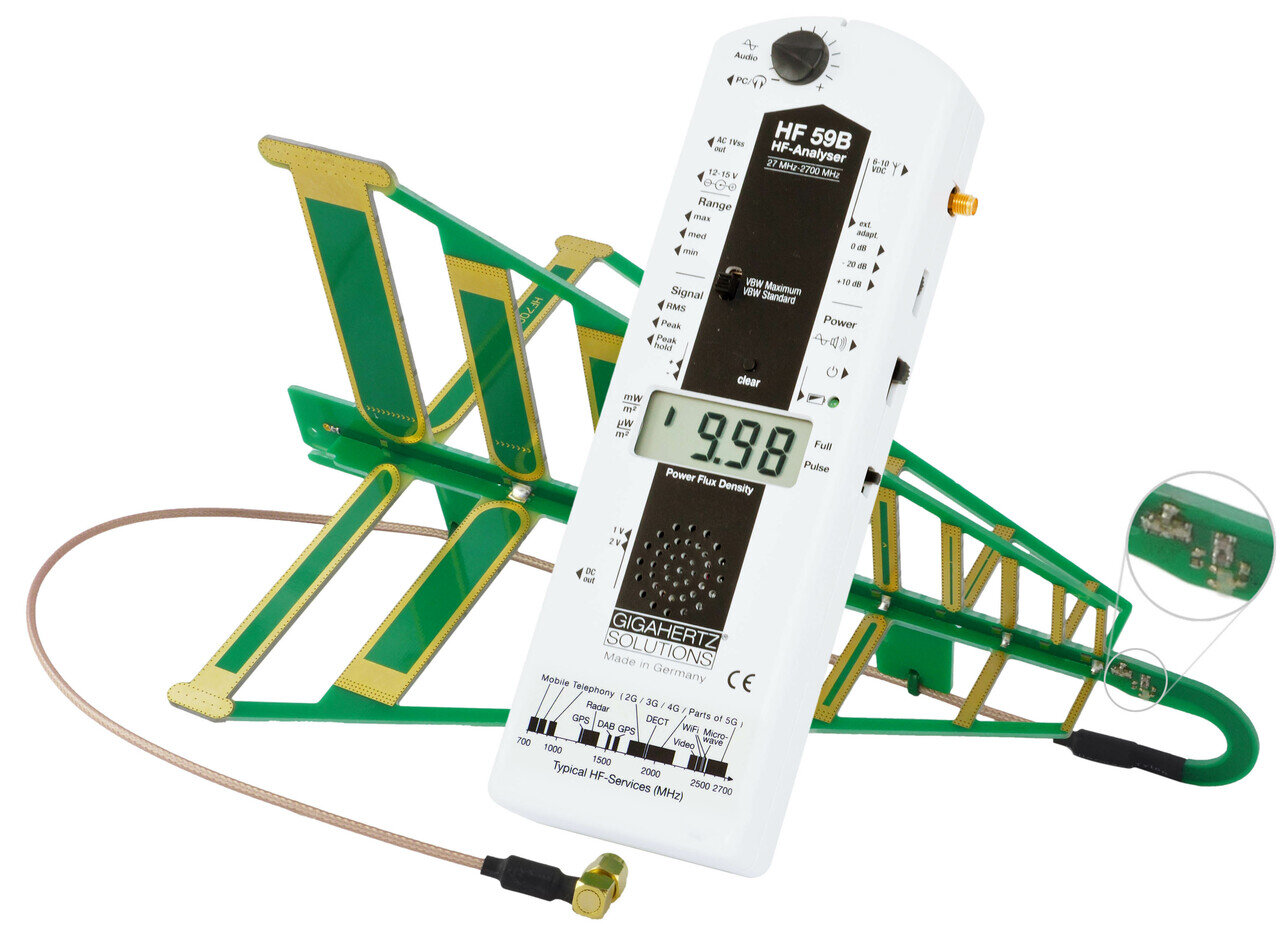

• HFE59B Radio Frequency Analyzer
• Antenna – Ultra Broadband Isotropic (27 MHz to 3.3 GHz) (UBB27)
• Antenna – Logarithmic Periodic 800 MHz – 2.7 GHz vertically polarized
• Users Guide – RF Analyzer and UBB27 Antenna
• 2 Year Warranty Certificate
• Rechargeable Battery Pack
• 120 VAC Battery Charger (220 VAC charger available on request)
• Silicone protective cover – black
• RF Attenuator – DG20_G10 (-20 dB or -100x)
• RF Preamplifier – HV10_27G3 (+10 dB or +10x)
• High Pass Filter – HP800_G3 (800 MHz)
