Description

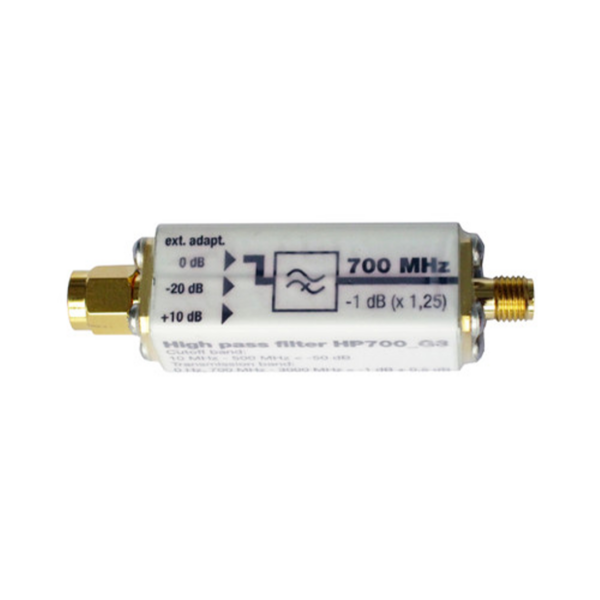

High Pass Filter – HP700 – G3

The growth and constant upgrade of wireless products and services has made source identification during RF environmental assessments increasingly difficult.

Know for sure what RF levels you are being exposed to – buy a Gigahertz Solutions Meter!

Features:

• Suppresses lower frequency disturbances when high frequency analysis is required
• Effectively Suppress signals of amateur radio, radio and TV transmission signals which allows for isolation of RF emissions from cellular tower transmissions and other higher frequency RF radiation
• Will isolate signals between 700 MHz – 3 GHz in the RF Spectrum
• Effectively cuts off signals in the band of 10 MHz – 600 MHz

Instructions:

• Attach the HP700_G3 filter to a compatible RF Analyzer (RF Analyser)
• Attach the LogPer directional antenna or the UBB27 multi-directional antenna to the HP700_G3
• Power on the RF Analyzer and configure appropriately
• Hold the RF Analyzer with an outstretched arm
• The analyzer will display the intensity of RF radiation on its LCD display
• As the filter causes 1 dB of signal loss, multiply the reading on the display by 1.25

Compatible With:

• Gigahertz Solutions HFE35C
• Gigahertz Solutions HF59B
• Gigahertz Solutions HFE59B

Includes:

• HP700_G3 High Pass Filter
