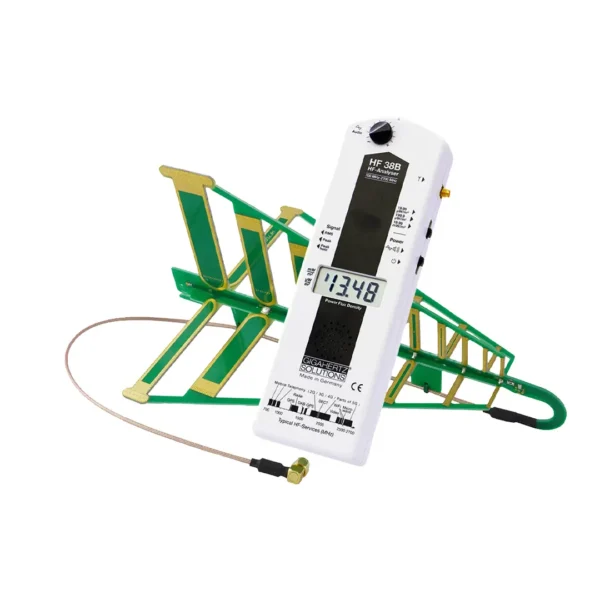

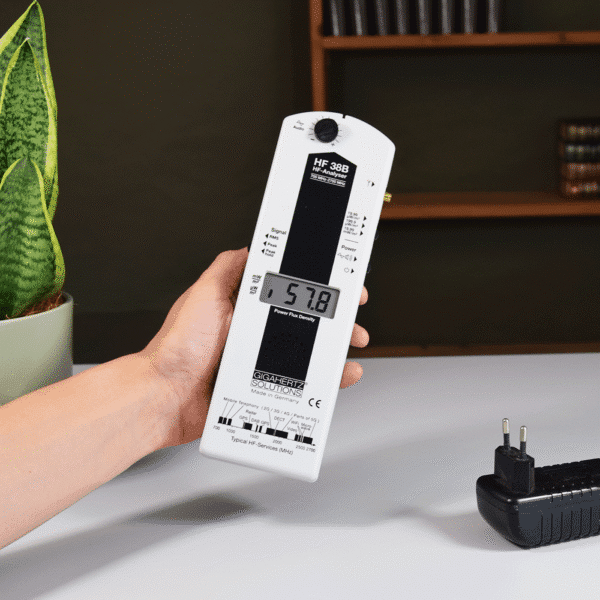

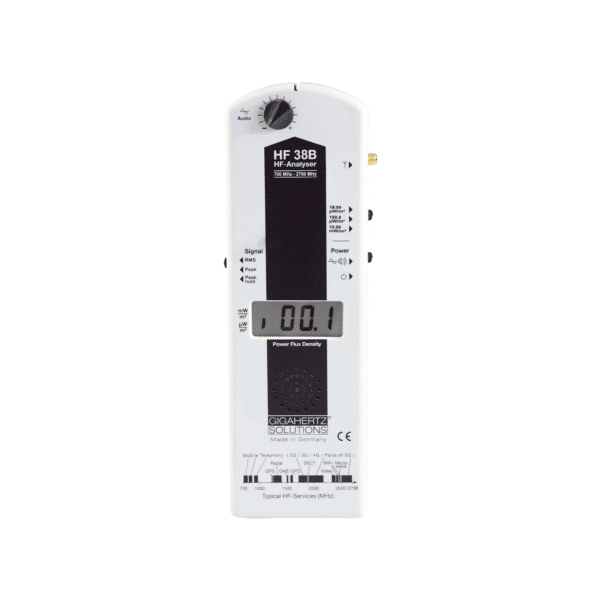

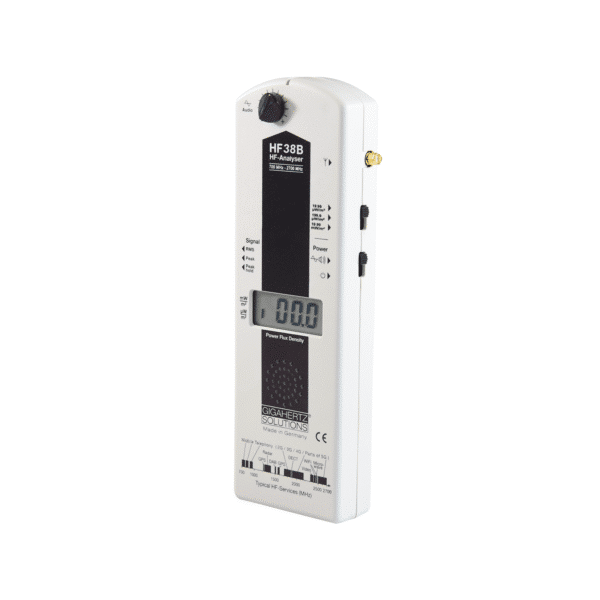

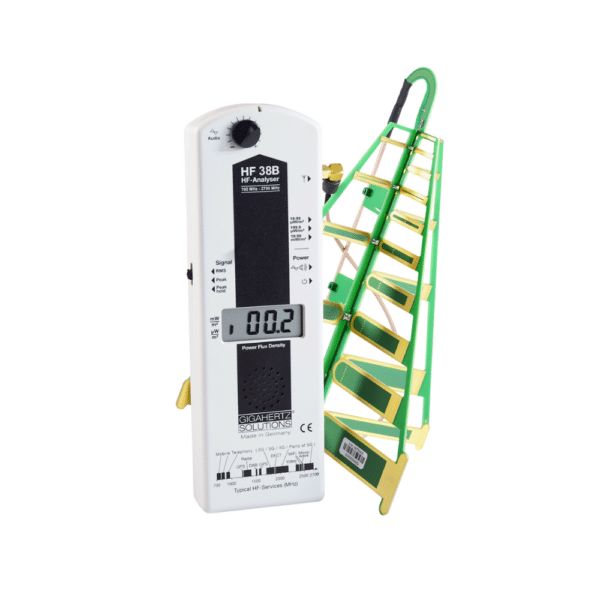

Gigahertz Solutions HF38B RF Meter

This meter includes Peak Hold Settings, Peak Settings and Average Settings, and it can measure higher power signals.

Experience a meter with Peak Hold features allow for accurate assessment of sources that emit strong, quick bursts of RF energy such as smart meters. Still easy to use and has the audio source identification features of the HF35C.

“Know for sure” what RF levels you are being exposed to – own a Gigahertz Solutions HF38B RF Meter.

Professional Level Upgrades:

• Audio Identification: The meter’s audio tone replicates the signalpatterns and intensity of measured RF emissions and aids in source identification
• Peak Hold, Peak and Average Settings: While measurements taken onthe Average Value setting provide a basic sense of RF levels at a test site,the Peak Value setting reveals the highest levels of RF being emitted. The PeakValue is regarded as the measurement critical to assessing potential biological effects
• Increased frequency response from up to 3.3 GHz (700 MHz to 3.3 GHz)

Advanced Features:

• 100 Times the measurement sensitivity of a Beginner Level Meter (HF32D)
• 10 Times the measurement sensitivity of a Intermediate Level Meter (HF35C)
• Offers a Coarse measurement range, Medium measurement range and a Fine measurement range
• Coarse range covers stronger readings of 0.01 – 19.99 mW/m²
• Increased sensitivity translates into detection of sources otherwise missed by our competitor’s RF detection equipment

Additional Features:

• Antenna: Directional Logarithmic Periodic “LogPer” 700 MHz – 3.3 GHz 45º
• LCD Display (3.5 digits): Easy to read 3.5 digit display
• Accuracy / Linearity Deviation: +/– 6dB
• Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
• Signal Detection Type: Peak Hold, Peak, Average, Full signal – Analogue plus Digital (pulsed)
• Power Supply: 9 Volt alkaline battery included
• Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
• Auto Power Off: Saves on battery use – will auto–power off after 40 min of continuous EMF testing
• Operating Time: Alkaline battery provides up to 6 – 7 hrs continuous EMF testing
• Measuring Ranges: 0.01 –19.99 µW/m² // 0.1 – 199 µW/m² // 0.01 – 19.99 mW/m². Maximum display resolution is 1,999,000 µW/m² which requires the external DG20 Attenuator

Also Offers Features of The HF35C:

• Easy to operate, power the unit on, selecting measurement settings and recording the LCD
• displayed readings as you walk the meter through your living space
• Accessorized with a sturdy Logarithmic–Periodic Antenna, designed for directional detection of RF waves. Readings increase when the meter gets closer to or points in the direction of offending sources
• Detects both analogue signals and pulsed digital signals
• Detects RF radiation generated by cellular phones and cordless phones (Digital or DECT);
• microwave ovens; wireless communication devices such as internet routers, WLAN, Wi-Fi, baby monitors, Bluetooth, video games, smart meters and cell phone towers (GSM, UMTS, 2G, 3G,4G)

Includes:

• Gigahertz Solutions HF38B Radio Frequency Meter
• Logarithmic Periodic Antenna 700 MHz – 3.3 GHz vertically polarized
• Users’ Guide
• 2 Year Warranty Certificate
• 9 V Alkaline Battery

Calibration:

During the manufacturing process strict calibration procedures are followed using only high end, calibrated measurement instruments. This guarantees that every HF35C meter made by Gigahertz has been individually calibrated to a traceable standard.
