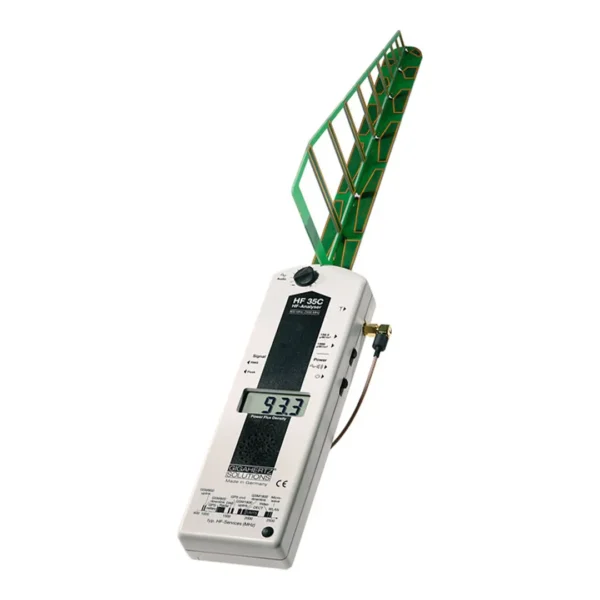

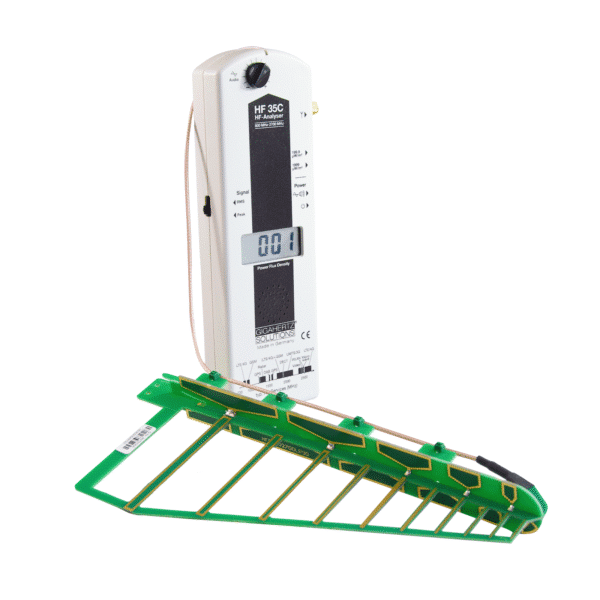

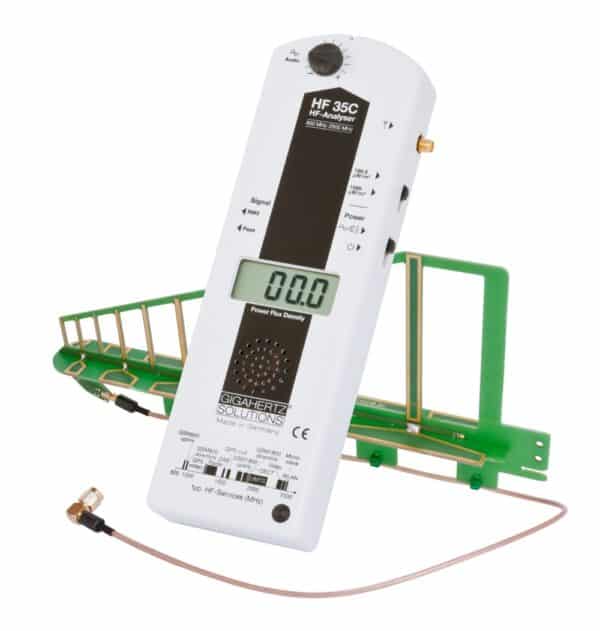

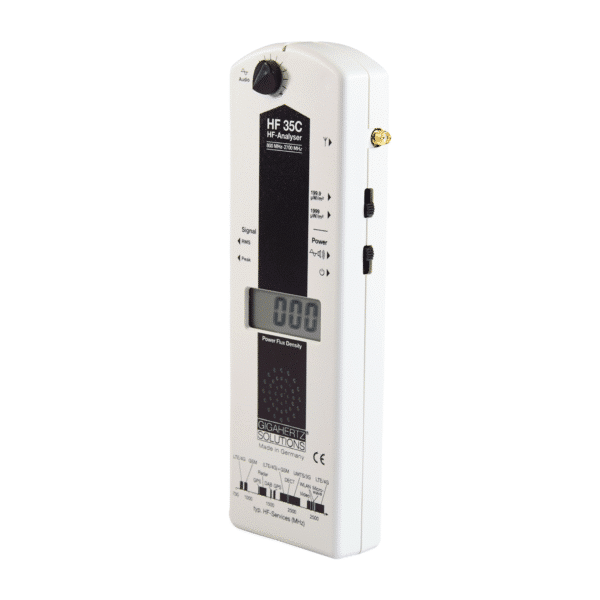

Gigahertz Solutions HF35C RF Meter

“Know for sure” what EMF levels you are being exposed to – buy a Gigahertz Solutions HF35C RF Meter.

Professional Level Upgrades

• Audio Identification: The meter’s audio tone replicates the signal patterns and intensity of measured RF emissions and aids in source identification
• Peak Settings and Average Settings: While measurements taken on the Average Value setting provide a basic sense of RF levels at a test site, the Peak Value setting reveals the highest levels of RF being emitted. The Peak Value is regarded as the measurement critical to assessing potential biological effects

Features:

Are you ready for a meter with more complex RF detection capabilities without giving up the ‘easy use’ and ‘simplified source identification’ features of the HF32D?

• 10 Times the measurement sensitivity of a Entry Level Meter (HF32D)
• A Coarse measurement range and Fine measurement range provide added value when needing to assess RF emissions
• Coarse range covers stronger readings of 1 – 1999 µW/m²
• Fine measurement range of 0.1 – 199.9 µW/m² offers higher sensitivity and allows for accurate detection of lower level signals
• Increased sensitivity translates into detection of sources otherwise missed by our competitor’s RF detection equipment

Additional Features:

• Antenna: Directional Logarithmic Periodic “LogPer” 800  MHz – 2.7 GHz  45º

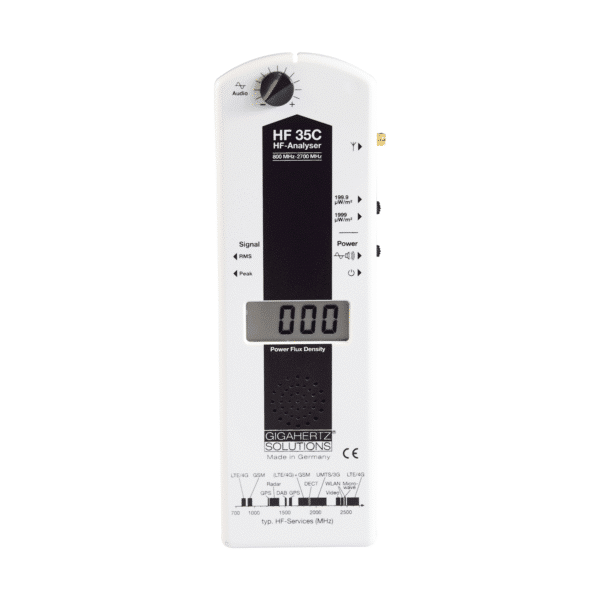

• LCD Display (3.5 digits): Easy to read 3.5 digit display
• Accuracy / Linearity Deviation: +/– 6 dB
• Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
• Signal Detection Type: Peak,Average, Full signal – Analogue plus Digital (pulsed)
• Power Supply: 9 Volt alkaline battery included
• Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
• Auto Power Off: Saves on battery use – will auto–power off after 40 min of continuous EMF testing
• Operating Time: Alkaline battery provides up to 6–7 hrs continuous EMF testing
• Measuring Ranges: 0.1 –199.9 µW/m² // 1 – 1999 µW/m²
• Maximum display resolution: 199,900 µW/m² which requires the external DG20 Attenuator

Also Offers The Features of The HF32D:

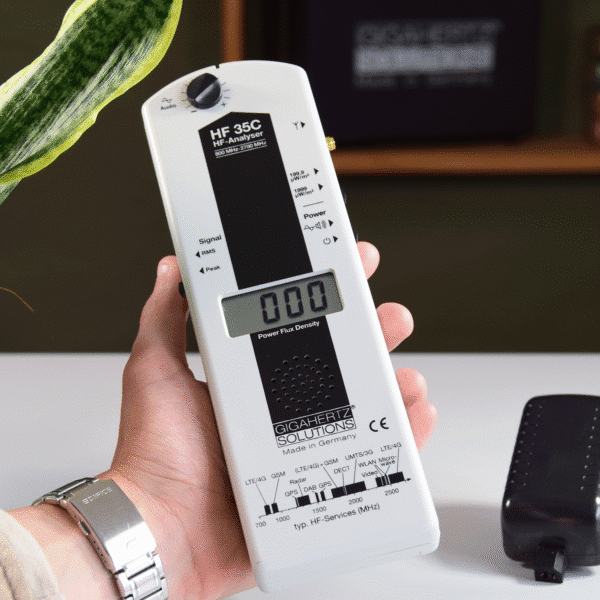

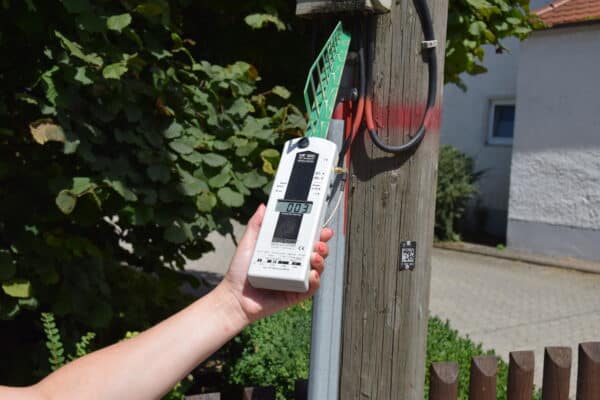

• Easy to operate, power the unit on, selecting measurement settings and recording the LCD displayed readings as you walk the meter through your living space
• Accessorized with a sturdy Logarithmic–Periodic Antenna, designed for directional detection of RF waves. Readings increase when the meter gets closer to or points in the direction of offending sources
• Detects both analogue and pulsed digital signals (1 – 1999 µW/m²)
• Detects RF radiation generated by cellular phones and cordless phones (Digital or DECT); microwave ovens; wireless communication devices such as internet routers, WLAN, Wi-Fi,  baby monitors, Bluetooth, video games, smart meters and cell phone towers in the operational range of 800 MHz to 2.7 GHz (GSM, UMTS, 2G, 3G, 4G)

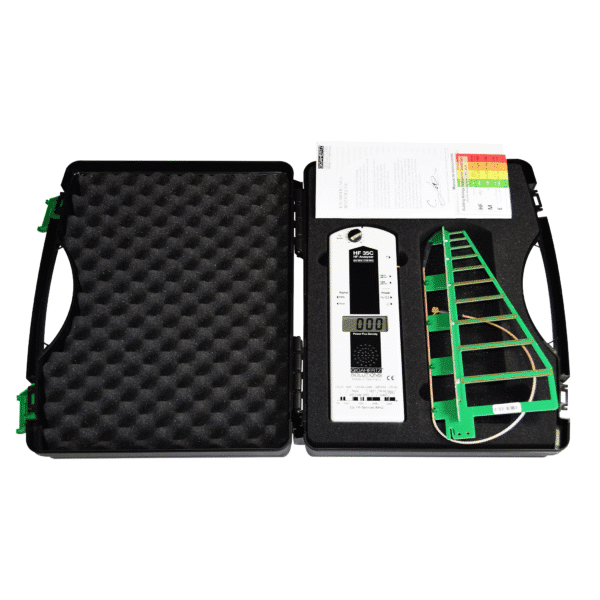

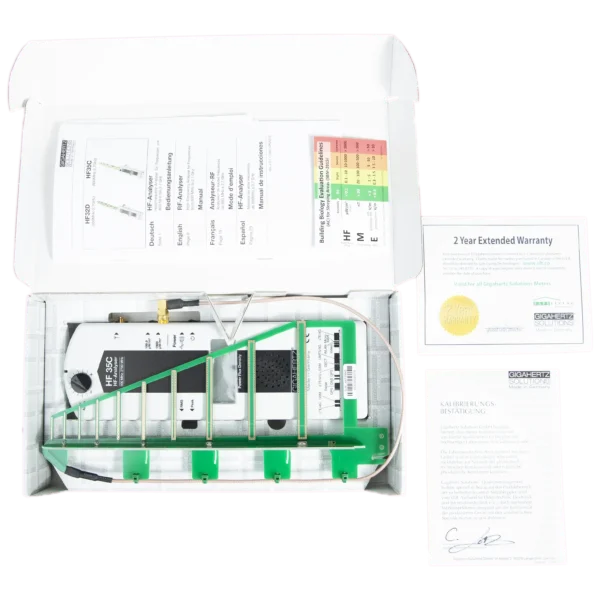

Includes:

• Gigahertz Solutions HF35C Radio Frequency Meter

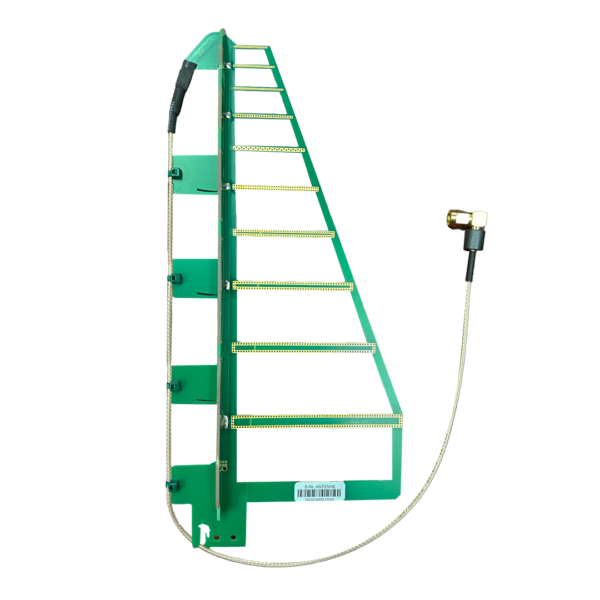

• Logarithmic Periodic Antenna 800 MHz – 2.7 GHz vertically polarized
• Users’ Guide
• 2 Year Warranty Certificate
• 9V Alkaline Battery
