Description

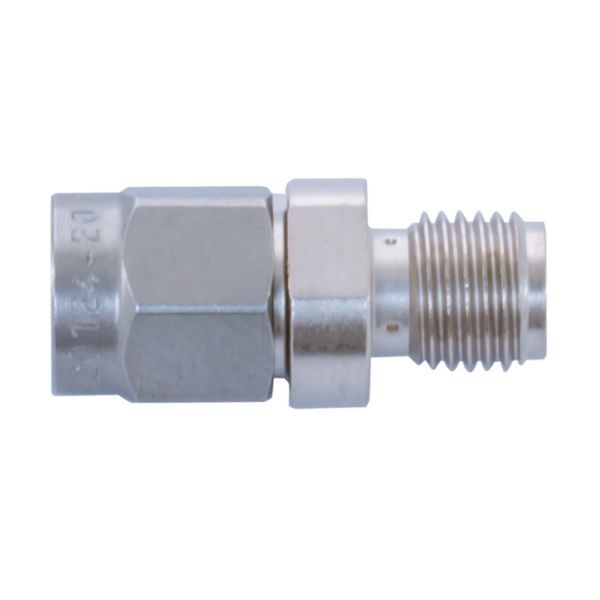

Attenuator DG20

If your RF Meter measurement range is set to maximum and the display indicates (“1…”) this attenuator will allow the HF-Analyzer (HF Analyser) to accurately display higher signal strength measurements and extend the range of your RF Meter.

“Know for sure” what RF levels you are being exposed to – buy a Gigahertz Solutions Meter!

Features:

• Extends the measuring range of the RF Meters
• Allows for 20dB or 100x higher field strength measurements in the frequency range of 10 MHz – 3 GHz
• Compatible with: Gigahertz Solutions HF32D, HF35C and the HF38B

Instructions:

• Attach the DG20 attenuator to a compatible RF Analyzer (RF Analyser)
• Attach the LogPer directional antenna to the DG20
• Power on the RF Analyzers (RF Analysers) and configure appropriately
• Hold the RF Analyzer with an outstretched arm
• The analyzer will display the intensity of RF radiation on its LCD display
• Simply multiply the measured value by 100 to obtain the actual value

Includes:

• DG20 Attenuator
